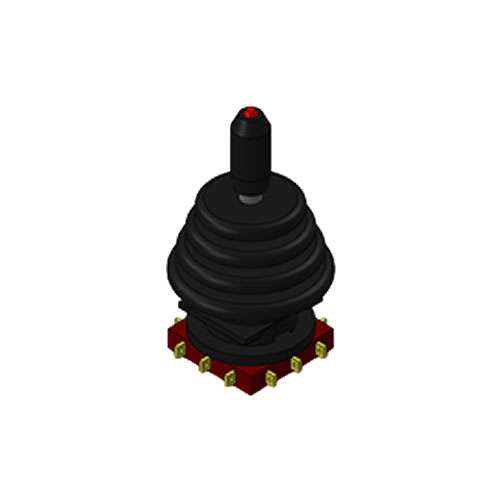

2-Axis Joystick Roda JEN–S2

2-Axis Joystick Roda JEN–S2

2-Axis Joystick Roda JEN–S2 JEN–S2 joystick has newly constructed. The optimized price-performance ratio for small to medium usage.

Electrical & Mechanical Specifications
Operation Angle	±20° from the center position
Movement	360
Supply Voltage	5Vdc
Contact	1NO+1NC for each side
Microswitches Rating	250Vac /5A
Operation Force	Between 2,5 and 3,5N
Mechanical Life	2x10?
Dielectric Strength	1min at 500Vac
Insulation Resistance	Above 1,000 M? at 500Vdc.
Operating Temperature	-20°C  to +65°C
Weight	Approx. 140 g
