2-Channel, 30A, Carbon Brush Slip Ring

Roda Sliprings, 2-Channel, 30A, Carbon Brush Slip Ring

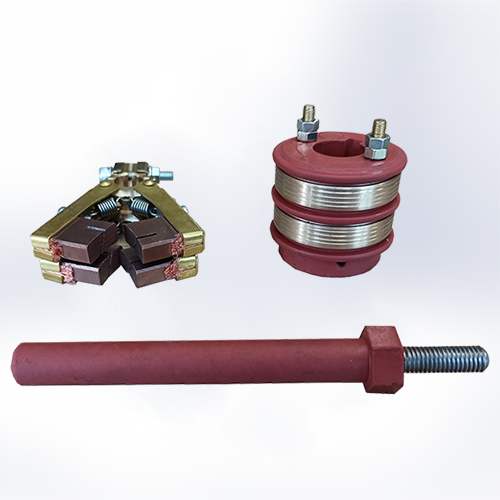

This product, the one of the Roda Sliprings carbon brush models, has 2 channels which can transmission up to 30A, 2 carbon brushes and an isolated shaft. It can rotate 2000 rpm and works at 1000 volt.

Technical Specifications
Channels	2
Inner Diameter	16 mm
Outer Diameter	55 mm
Rated Current	? 30A / Per ring
Rated Voltage	? 1000V
Maximum Speed	? 2000 rpm
Working Position	Vertical and Horizontal
