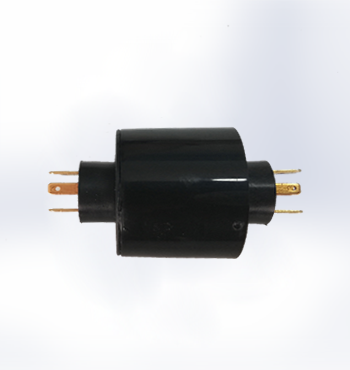

4 Channel Slip Ring MER-X1, 2x15A@ 2x 5A, Pin Type

4 Channel Slip Ring MER-X1, 2x15A@ 2x 5A, Pin Type

4 Channel Slip Ring MER-X1, 2x15A@ 2x 5A, Pin Type Roda Sliprings offer high current pin type slipring commonly for phase + neutral transmission.

Technical Specifications
Number of Channels	4
Outer Diameter	32,9mm
Current Amp. (maximum)	? 2x 15A @ 2x 5A
Operating voltage	? 400Vac / 250Vdc
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	? 300 rpm
Operating temperature	-40°C to +80°C
Connection Type	Pin
Working Position	Vertical and Horizontal
