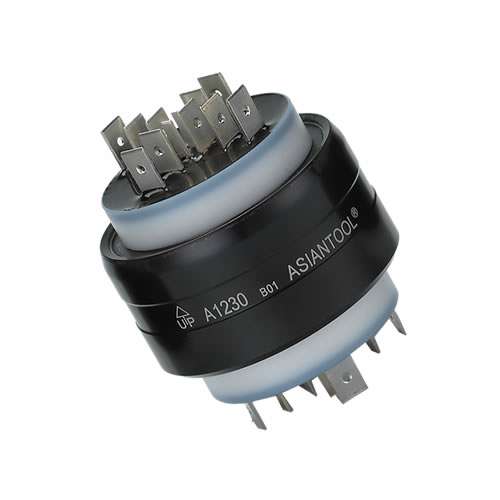

Asiantool A1230 30-Pole Rotary Electrical Connector
Asiantool A1230 30-Pole Rotary Electrical Connector
Regular price
CHF 2,100.00
Regular price
CHF 2,100.00
Sale price
CHF 2,100.00
Unit price
per
Tax included.
Couldn't load pickup availability
Asiantool A1230 Rotary Electrical Connector
Asiantool A1230 30-pole rotating electrical connector (REC or electrical slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.| Number of Channel | 12 |
|---|---|
| Rated Current | 2x4A @ 10x30A |
| Rated Voltage, max 250Vac | 250VAC |
| Operating Temperature Range | 30° to 60° C |
| Maximum Speed, max | 60 rpm |
| Maximum Frequency | 100 MHz |
| Insulation Resistance | >25 Mohm |
| Rotation Torque | 2000 gm-cm |
| Document |
