Asiantool A2S 2-Pole Rotary Electrical Connector
Asiantool A2S 2-Pole Rotary Electrical Connector
Regular price
CHF 66.00
Regular price
CHF 66.00
Sale price
CHF 66.00
Unit price
per
Tax included.
Couldn't load pickup availability

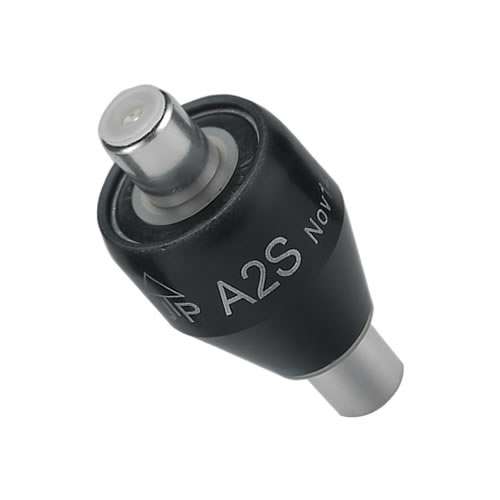

Asiantool A2S Rotary Electrical Connector
Asiantool A2S 2-pole rotating electrical connector (REC or electrical slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.Number of Channel | 2 |
---|---|
Rated Current | 4A |
Rated Voltage, max 250Vac | 250VAC |
Operating Temperature Range | 30° to 60° C |
Maximum Speed, max | 2000 rpm |
Maximum Frequency | 200 MHz |
Insulation Resistance | >25 Mohm |
Rotation Torque | 75 gm-cm |
Document |
![]() |
