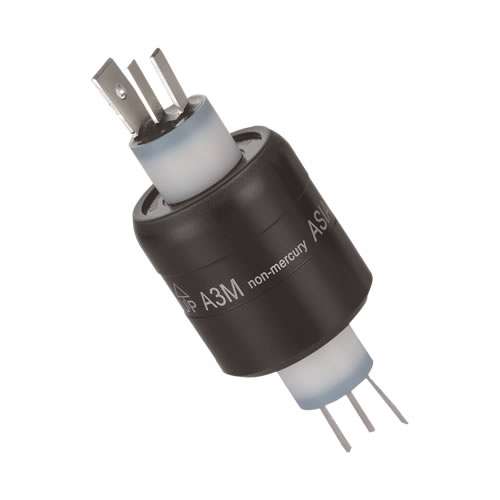

Asiantool A3M 3-Pole Rotary Electrical Connector
Asiantool A3M 3-Pole Rotary Electrical Connector
Regular price
CHF 127.00
Regular price
CHF 150.00
Sale price
CHF 127.00
Unit price
per
Tax included.
Couldn't load pickup availability
Asiantool A3M Rotary Electrical Connector
Asiantool A3M 3-pole rotating electrical connector (REC or electrical slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.| Number of Channel | 3 |
|---|---|
| Rated Current | 2x4A @ 1x30A |
| Rated Voltage, max 250Vac | 250VAC |
| Operating Temperature Range | 30° to 60° C |
| Maximum Speed, max | 1800 rpm |
| Maximum Frequency | 200 MHz |
| Insulation Resistance | >25 Mohm |
| Rotation Torque | 200 gm-cm |
| Document |
