Asiantool A8H Rotary Electrical Connector
Asiantool A8H Rotary Electrical Connector
Regular price
CHF 780.00
Regular price
CHF 780.00
Sale price
CHF 780.00
Unit price
per
Tax included.
Couldn't load pickup availability

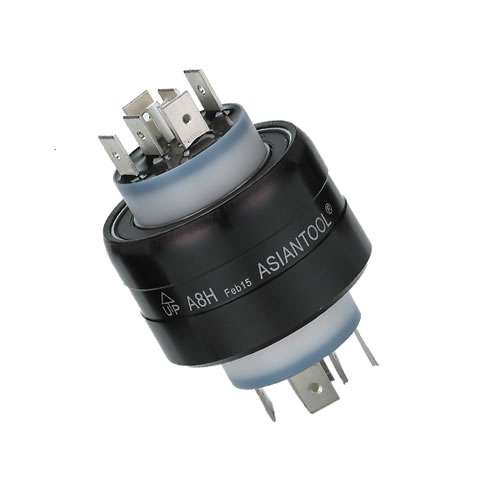

Asiantool A8H Rotary Electrical Connector
Asiantool A8H rotating electrical connector (REC or slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.| Number of Channel | 8 |
|---|---|
| Rated Current | 6 poles 30A/2 poles 4A |
| Rated Voltage, max | 250Vac |
| Operating Temperature Range | 30° to 60° C |
| Maximum Speed, max | 200 rpm |
| Maximum Frequency | 100 MHz |
| Insulation Resistance | >25 Mohm |
| Rotation Torque | 1000 gm-cm |
| Document |  Download |
