Electro Pneumatic 4x10A+1 Ethernet+1/2″ Air/Flow Through With 2 Channel
Electro Pneumatic 4x10A+1 Ethernet+1/2″ Air/Flow Through With 2 Channel
Regular price
CHF 2,749.00
Regular price
CHF 2,749.00
Sale price
CHF 2,749.00
Unit price
per
Tax included.
Couldn't load pickup availability

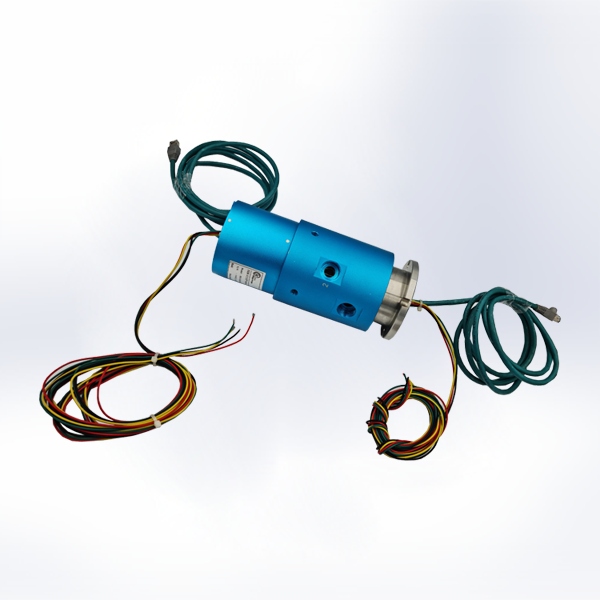

Electro Pneumatic 4x10A+1 Ethernet
The one of our capsule slip ring models.
The Electro Pneumatic Slip Ring is a compact and efficient solution for transmitting both electrical power and high-speed data in rotating systems. With 4 power channels (10A each) and 1 Gigabit Ethernet line, it is designed for demanding applications such as robotics, camera systems, and amusement park equipment.
This capsule slip ring combines low electrical resistance, smooth 360° rotation, and durable construction, making it ideal for continuous operation in industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 4 × 10A / 1 × Gigabit Ethernet |
| Outer Diameter | 95 mm |
| Current (Max) | ≤ 10A per ring |
| Operating Voltage | ≤ 240 VAC / DC |
| Electrical Resistance | ≤ 0.01 Ω (at 5 rpm, 6 VDC, 0.2 A) |
| Rotational Speed | 0–600 rpm |
| Operating Temperature | –20°C to +80°C |
| Connection Cable Length | 1000 mm (Stator / Rotor) |
| Contact Material | Precious metals |
| Working Position | Vertical and horizontal |
