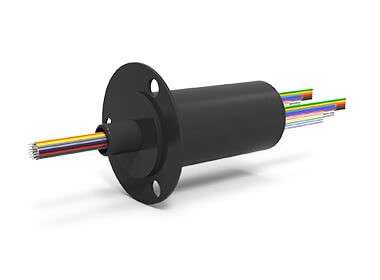

ES36 (AC6355-36), 36-Circuit Slip Ring, Compact Capsule, under 50 Mbps

ES36 (AC6355-36), 36-Circuit Slip Ring, Compact Capsule, under 50 Mbps The ES Series electrical slip ring is a rotating assembly used to transfer signals, control circuits or data (analog / digital) from stationary inlets to rotating outlets.

TOTAL CIRCUITS	36
(CIRCUITS) AMPS	(36x) 2A
VOLTAGE RATING	240V
MAX. DATA SPEED	Under 50 Mbps [Non-Ethernet]
MAX. SPEED	250 RPM
MOUNTING TYPE	Flange
CAPSULE LENGTH	2.600" [66 mm]
LEAD WIRE LENGTH	48" [1219 mm]
CONTACT MATERIAL	Gold
WIRE GAUGE (AWG) / MATERIAL	26 / Silver-Plated Copper
ELECTRICAL NOISE	60 Milliohms (max.)
DUST / WATER PROTECTION	DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options.
PRODUCT DISCLAIMER	Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature. In order to successfully transfer digital data signals, a variety of conditions must be met. Please consult with DSTI for approval. For the most reliable transfer of digital data signals, see our Ethernet slip ring options. All electrical components (including electrical slip rings) are non-returnable.
