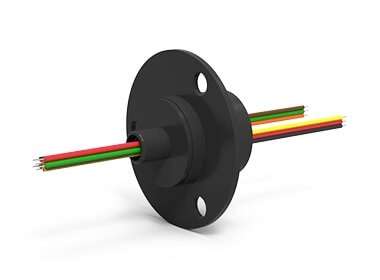

ES6A-L, 6-Circuit Slip Ring, Compact Capsule, under 50 Mbps
ES6A-L, 6-Circuit Slip Ring, Compact Capsule, under 50 Mbps
Regular price
CHF 199.00
Regular price
CHF 199.00
Sale price
CHF 199.00
Unit price
per
Tax included.
Couldn't load pickup availability
ES6A-L, 6-Circuit Slip Ring, Compact Capsule, under 50 Mbps
| TOTAL CIRCUITS | 6 |
|---|---|
| (CIRCUITS) AMPS | (6x) 2A |
| VOLTAGE RATING | 120V |
| MAX. DATA SPEED | Under 50 Mbps [Non-Ethernet] |
| MAX. SPEED | 75 RPM |
| MOUNTING TYPE | Flange |
| CAPSULE LENGTH | 0.661" [17 mm] |
| LEAD WIRE LENGTH | 48" [1219 mm] |
| CONTACT MATERIAL | Gold |
| WIRE GAUGE (AWG) / MATERIAL | 28 / Silver-Plated Copper |
| ELECTRICAL NOISE | 60 Milliohms (max.) |
| DUST / WATER PROTECTION | DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options. |
| PRODUCT DISCLAIMER | Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature. In order to successfully transfer digital data signals, a variety of conditions must be met. Please consult with DSTI for approval. For the most reliable transfer of digital data signals, see our Ethernet slip ring options. All electrical components (including electrical slip rings) are non-returnable. |
