ESCHA
ESCHA AL-WWAKS8-10/S370 Cable, 10M
ESCHA AL-WWAKS8-10/S370 Cable, 10M
Regular price
CHF 117.00
Regular price
CHF 153.00
Sale price
CHF 117.00
Unit price
per
Tax included.
Couldn't load pickup availability

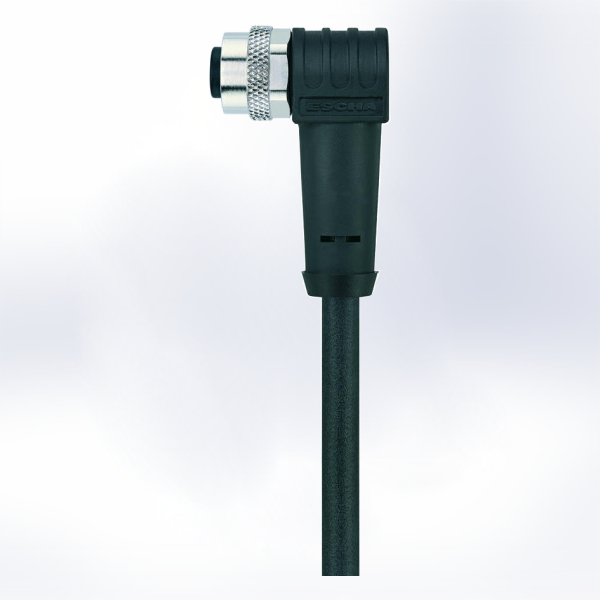

ESCHA AL-WWAKS8-10/S370 Sensor/Actuator Cable, 10-meters, 8-pins
| Technical Data | |
| Connector | female, angled, M12 |
| Number of pins | 8 |
| Pin assignment | 1 WH, 2 BN, 3 GN, 4 YE, 5 GY, 6 PK, 7 BU, 8 RD |
| Coding | A |
| Rated voltage | 30V |
| Resistance (m?) | 5 |
| Insulation resistance (?) | >=108 |
| Ambient temperature product | -30°C... +90°C |
| Contact material | Metal, CuZn, gold-plated |
| Grip body material | Plastic, TPU, BK |
| Contact-carrier material | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated |
| Sealing (female) material | FPM/FKM |
| Standards | IEC 61076-2-101 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Mechanical life-cycle | >100 mating cycles |
| Cable end assembly | open cable end |
| Degree of pollution | 3 |
| Shielding | with shielding |
