ESCHA AL-WWAKS8-2/S370 Cable, 2M
ESCHA AL-WWAKS8-2/S370 Cable, 2M
Regular price
CHF 72.00
Regular price
CHF 90.00
Sale price
CHF 72.00
Unit price
per

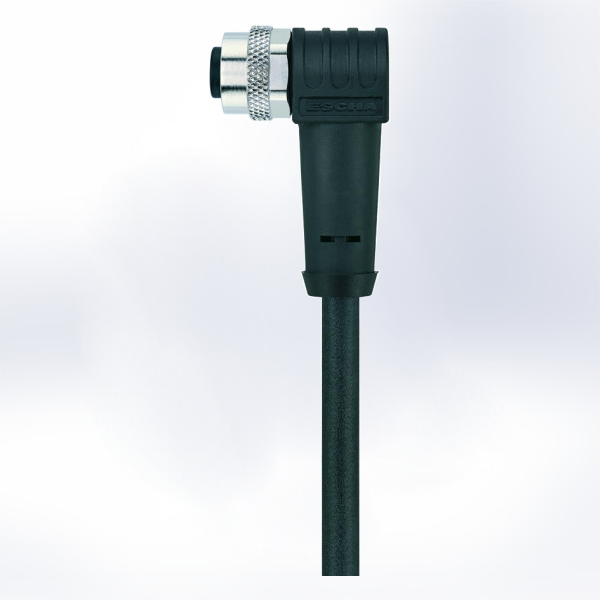

ESCHA AL-WWAKS8-2/S370 Sensor/Actuator Cable, 2-meters, 8-pins
Technical Data | |
Connector | female, angled, M12 |
Number of pins | 8 |
Pin assignment | 1 WH, 2 BN, 3 GN, 4 YE, 5 GY, 6 PK, 7 BU, 8 RD |
Coding | A |
Rated voltage | 30V |
Resistance (m?) | 5 |
Insulation resistance (?) | >=108 |
Ambient temperature product | -30°C... +90°C |
Contact material | Metal, CuZn, gold-plated |
Grip body material | Plastic, TPU, BK |
Contact-carrier material | Plastic, TPU, BK |
Coupling nut material | Metal, CuZn, nickel-plated |
Sealing (female) material | FPM/FKM |
Standards | IEC 61076-2-101 |
Degree of protection (mounted) | IP65, IP67, IP68 |
Mechanical life-cycle | >100 mating cycles |
Cable end assembly | open cable end |
Degree of pollution | 3 |
Shielding | with shielding |
