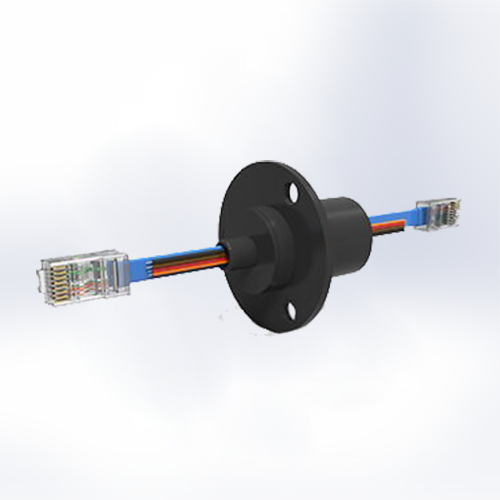

ESE224 8-Channel Capsule Slip Ring - DSTI
ESE224 8-Channel Capsule Slip Ring - DSTI
Regular price
CHF 1,300.00
Regular price
CHF 1,399.00
Sale price
CHF 1,300.00
Unit price
per
ESE224 8-Channel Capsule Slip Ring - DSTI
Technical Specifications | |
Model # | ESE224 |
Channels | 8 |
Rated Current | (2x) 2A, (2x) 10A, (1x) Ethernet |
Rated Voltage | 240V |
Operating Temperature | -40° C to 80° C [-40° F to 176° F] |
Maximum Speed | 250 RPM |
Capsule Length | 1.680" [43 mm] |
Lead Wire Length | 48" [1219 mm] |
Max. Data Speed | 100 Mbps [100Base-T] |
Contact Material | Gold |
Wire Gauge (AWG) / Material | 26, 28 / Silver-Plated Copper |
Electrical Noise | 60 Milliohms (max.) |
