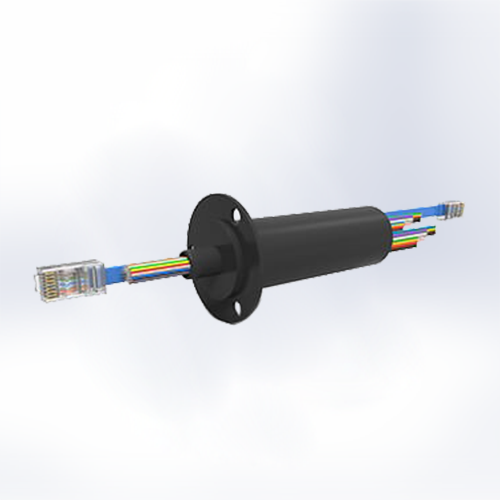

ESE2358 45-Channel Capsule Slip Ring - DSTI
ESE2358 45-Channel Capsule Slip Ring - DSTI
Regular price
CHF 3,999.00
Regular price
CHF 5,000.00
Sale price
CHF 3,999.00
Unit price
per
Tax included.
Couldn't load pickup availability
ESE2358 45-Channel Capsule Slip Ring - DSTI
| Technical Specifications | |
| Model # | ESE2358 |
| Channels | 45 |
| Rated Current | (35x) 2A, (2x) 10A, (1x) Ethernet |
| Rated Voltage | 240V |
| Operating Temperature | -40° C to 80° C [-40° F to 176° F] |
| Maximum Speed | 250 RPM |
| Capsule Length | 3.500" [89 mm] |
| Lead Wire Length | 48" [1219 mm] |
| Max. Data Speed | 1 Gbps [1000Base-T] |
| Contact Material | Gold |
| Wire Gauge (AWG) / Material | 16, 26, 28 / Silver-Plated Copper |
| Electrical Noise | 60 Milliohms (max.) |
