ESET184 22-Channel Through-Bore Slip Ring - DSTI
ESET184 22-Channel Through-Bore Slip Ring - DSTI
Regular price
CHF 4,100.00
Regular price
CHF 4,100.00
Sale price
CHF 4,100.00
Unit price
per
Tax included.
Couldn't load pickup availability

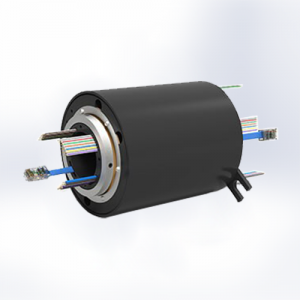

ESET184 22-Channel Through-Bore Slip Ring - DSTI
| Technical Specifications | |
| Model # | ESET184 |
| Channels | 22 |
| Rated Current | (18x) 10A, (1x) Ethernet |
| Rated Voltage | 600V |
| Operating Temperature | -40° C to 80° C [-40° F to 176° F] |
| Maximum Speed | 250 RPM |
| Capsule Length | 4.940" [125 mm] |
| Lead Wire Length | 36" [914 mm] |
| Max. Data Speed | 1 Gbps [1000Base-T] |
| Contact Material | Silver |
| Wire Gauge (AWG) / Material | 24 / Copper, 16 / Tin-Plated Copper |
| Electrical Noise | 100 Milliohms (max.) |
