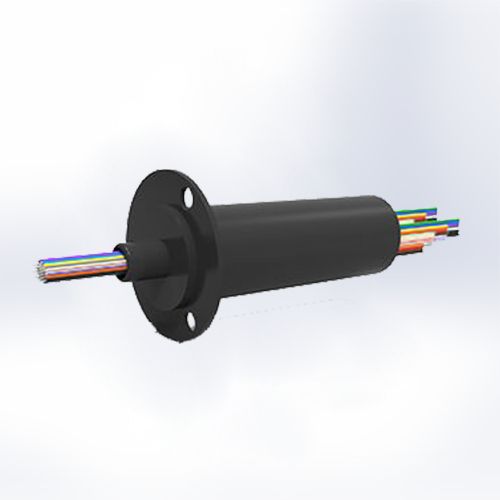

ESM440 44-Channel Capsule Slip Ring - DSTI
| Technical Specifications | |
| Model # | ESM440 |
| Channels | 44 |
| Rated Current | (4x) 10A, (40x) 2A |
| Rated Voltage | 240V |
| Operating Temperature | -40° C to 80° C [-40° F to 176° F] |
| Maximum Speed | 250 RPM |
| Capsule Length | 3.500" [89 mm] |
| Lead Wire Length | 48" [1219 mm] |
| Max. Data Speed | Under 50 Mbps [Non-Ethernet] |
| Contact Material | Gold |
| Wire Gauge (AWG) / Material | 16, 26 / Silver-Plated Copper |
| Electrical Noise | 60 Milliohms (max.) |
