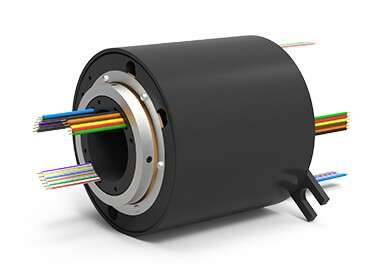

EST18 (AC4598-18), 18-Circuit Slip Ring, Through Bore, under 50 Mbps

EST18 (AC4598-18), 18-Circuit Slip Ring, Through Bore, under 50Mbps

EST18 (AC4598-18), 18-Circuit Slip Ring, Through Bore, under 50 Mbps

TOTAL CIRCUITS	18
(CIRCUITS) AMPS	(18x) 10A
VOLTAGE RATING	600V
MAX. DATA SPEED	Under 50 Mbps [Non-Ethernet]
MAX. SPEED	250 RPM
MOUNTING TYPE	Through Bore
CAPSULE LENGTH	4.010" [102 mm]
LEAD WIRE LENGTH	36" [914 mm]
CONTACT MATERIAL	Silver
WIRE GAUGE (AWG) / MATERIAL	16 / Tin-Plated Copper
ELECTRICAL NOISE	100 Milliohms (max.)
DUST / WATER PROTECTION	DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options.
PRODUCT DISCLAIMER	Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature. In order to successfully transfer digital data signals, a variety of conditions must be met. Please consult with DSTI for approval. For the most reliable transfer of digital data signals, see our Ethernet slip ring options. All electrical components (including electrical slip rings) are non-returnable.

  The through-bore design allows for more flexibility in terms of the size and shape of the component that can pass through it, and also allows for the use of larger and more complex equipment that may not fit within the confines of a standard slip ring. This type of slip ring is typically used in heavy machinery, robotics, and industrial automation where the need to transfer power and signals through the center of a rotating shaft is required. Please click here for see all Through Bore Slip Ring models.
