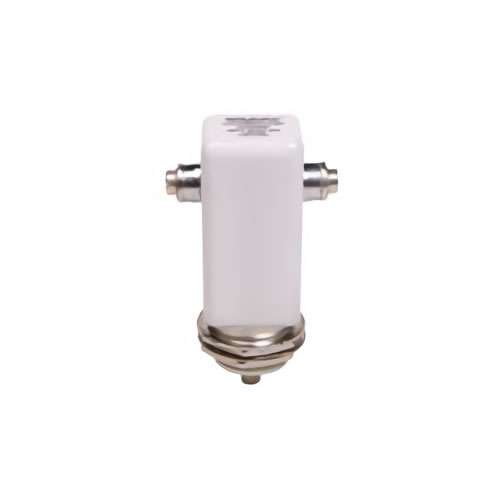

Gigavac G15SPD 15kV DPDT HV Relay

Gigavac G15SPD 15kV DPDT HV Relay

Gigavac G15 Double Pole Double Throw, DPDT Relay offers two normally open and two normally closed contacts set in one relay. Durable tungsten contacts improve load switching capability. Insulated flying leads make connections easy. Custom lengths available.Mounting options in any axis

Specifications
Model No	G15SPD
Voltage Rating	15kV
Coil Voltage	26.5VDC
Contact Configuration	DPDT
Carry Current	12A
High Voltage Connection	solder cups
Max Operate Configuration	through panel - jam nut
Temp Rating Operating (C):	-55 to +125
Mech Life (cycles)	2 million
Download	Download

G15 Model Selection Table

G15SPD	S	P
High Voltage/ Power Terminal Connections	S = Solder Pot W = Screw
Mounting		P=Through Panel
Coil Voltage			D = 26.5 Vdc D-12Vdc = 12Vdc
