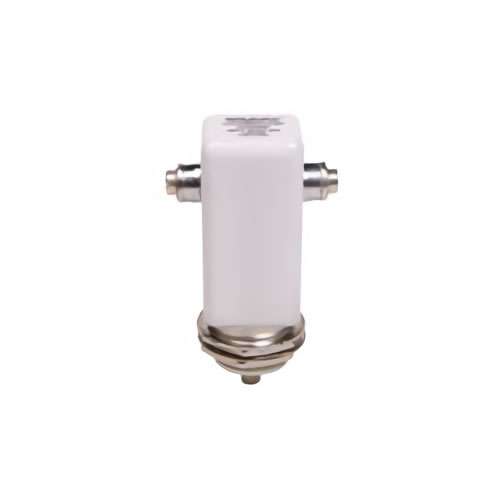

Gigavac G20WP 28kV SPST-NO HV Relay

Gigavac G20WP 28kV SPST-NO HV Relay

Gigavac G20 Single Pole Single Throw, SPST Relay offers a normally open contact feature relay. Threaded HV connections mean easy installation. Inert gas dielectric provides low and stable contact resistance & multiple coil Voltage options which increases the compatibility with drive circuits. Vacuum dielectric for improved hi-inrush and make it into load switching. Tungsten contacts for long operational life.

Specifications
Model No	G20WP
Voltage Rating	28kV
Coil Voltage	115VDC
Max Carry (Amps) DC or 60Hz	65
Carry Current	110A
Max. Contact Res. (Ohms)	0.005
Max Operate Time (ms)	18
Max Release Time (ms)	10
Mech Life (cycles)	2 million
Download	Download

G20 Series Product Selection Table

G20	W	P	x
High Voltage/ Power Terminal Connections	W= Screw
Mounting		P=Through Panel
Coil Voltage			Blank = 26.5 Vdc -12Vdc = 12 Vdc -115Vdc = 115 Vdc

  VoltShop is no an authorized distributor for GIGAVAC. Gigavac is a registered trademark of Sensata Technologies, Inc.
