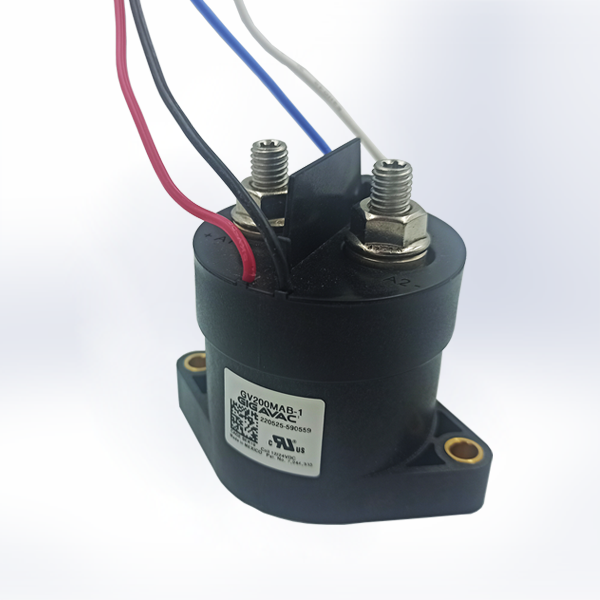

GIGAVAC GV200MAB-1 DC Contactor

GIGAVAC GV200MAB-1 DC Contactor

Regular price CHF 140.00
Regular price CHF 250.00 Sale price CHF 140.00
Sale Sold out
Tax included.

GIGAVAC GV200MAB-1

features High Efficiency Dual DC Coils – very low 12VDC, 24VDC, or 48VDC continuous coil power with no EMI emissions or cross-talk on your system control power. Ideal for battery powered systems or applications where low power is needed.

PWM coil options provide additional drive control flexibility.

Built-in coil suppression for all DC coils – saves you engineering time and parts cost by eliminating the need for external coil suppression.

Not position sensitive – can be mounted in any position for ease of installation.

Hermetically Sealed – designed to meet:

  • UL1604 for Class I & II, Div 2 and Class III for use in hazardous locations

  • IP67 for temporary water immersion (30 minutes)

  • SAE J1171 – external ignition protection

  • ISO8846 – protection against ignition around flammable gases

Includes stainless steel nuts and mounting inserts for years of corrosion-free service.


Specifications
Contact Arrangement  Form B: SPST-NO
Mechanical Life 1,000,000 cycles
Operating Temp Range -55 °C to +85 °C
Coil Type PWM
Coil Voltage, Nominal 12/24 Vdc
Rated Current 500 A
Rated Voltage 800 V
Weight 0.38 (0.84) Kg (Lb)

VoltShop is no an authorized distributor for GIGAVAC. Gigavac is a registered trademark of Sensata Technologies, Inc.
