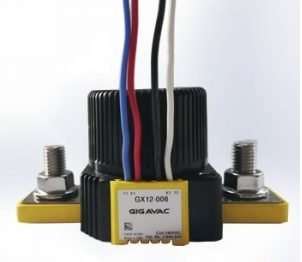

GIGAVAC GX12-006 DC Contactor



GIGAVAC GX12-006 DC Contactor

GIGAVAC presents the GX12-006 EPIC^® sealed DC Contactor. GX Contactors can switch DC loads at low and high voltage levels from 12 to 800VDC. The GIGAVAC GX Series is hermetically sealed using the patented ceramic header.  GX contactors can switch DC loads up to 800VDC.  These small RoHS compliant contactors can mount in any position and can use in nearly any harsh environment including underwater and at temperatures from –55°C to 85°C. Most are cRUus recognized.

Specifications
Main Contact	SPST-NO Form X
Coil Voltage	240Vdc (140Vdc to 280Vdc)
Mechanical Life	1,000,000 Cycles
Rated Current	225 Amps
Rated Voltage	12-800 VDC
Auxiliary Contact	NO (Normally Open) (2A, 24VDC)
Weight	0.5 (1.1) Kg (Lb)

VoltShop is no an authorized distributor for GIGAVAC. Gigavac is a registered trademark of Sensata Technologies, Inc.
