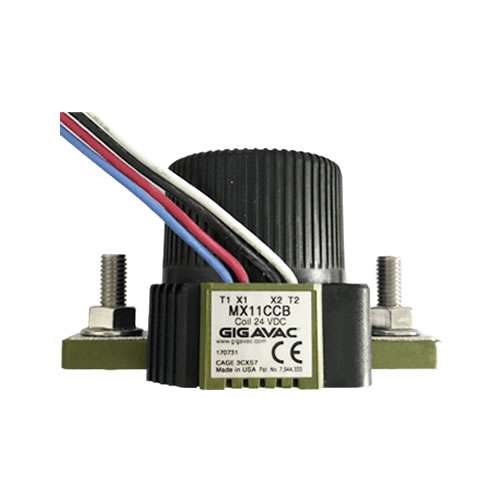

GIGAVAC MX11CCB DC Contactor



GIGAVAC MX11CCB MIL & Heavy Duty DC Contactors

GIGAVAC MX11CCB sealed DC Contactor is designed to meet MIL-R-6106 and are especially suited for military vehicles and heavy-duty applications. The ceramic to metal weld allows for operation in extreme temperatures up to 200°C. Silver contacts ensure long life and contact weld resistant operation even in high inrush and overload applications.

Specifications
Main Contact	Silver / SPST / NO
Coil Voltage	24 VDC
Mechanical Life	300,000 cycles
Operating Temp Range	-55°C to +100°C "Tested to temperatures up to 200°C"
Rated Current	150 Amps
Rated Voltage	12V-48V
Fault Interrupt @ 28Vdc	1200 A
Auxiliary Contact	SPST, NO: Normally Open
Weight	1.0 lb with hardware (460 grams)

MX Series Products Selection Table: MX Series / MX11 All Models VoltShop is no an authorized distributor for GIGAVAC. Gigavac is a registered trademark of Sensata Technologies, Inc.
