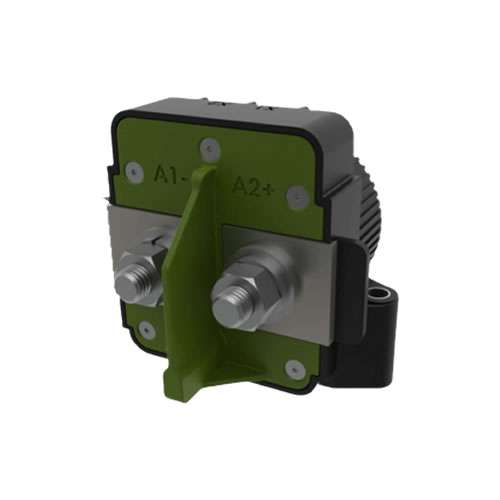

GIGAVAC MX32CDB DC Contactor



GIGAVAC MX32CDB MIL & Heavy Duty DC Contactors

GIGAVAC MX32CDB sealed DC Contactor is designed to meet MIL-R-6106 and are especially suited for military vehicles and heavy-duty applications. The ceramic to metal weld allows for operation in extreme temperatures up to 200°C. Silver contacts ensure long life and contact weld resistant operation even in high inrush and overload applications.

Specifications
Main Contact	Silver / SPST / NO
Coil Voltage	24 VDC
Mechanical Life	300,000 cycles
Operating Temp Range	-55°C to +100°C “Tested to temperatures up to 200°C”
Rated Current	200 Amps
Rated Voltage	12V-48V
Fault Interrupt @28Vdc	1500A
Auxiliary Contact	SPST, Normally Open
Weight	1.0 lb with hardware (460 grams)
