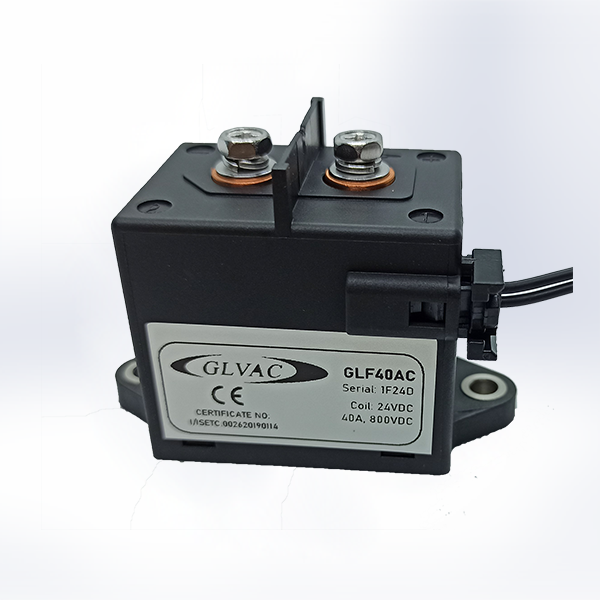

GLVAC GLF40AC, 40A, 800Vdc DC Contactor

Name: GLVAC GLF40AC, 40A, 800Vdc DC Contactor
Brand: GLVAC
SKU: EW-GLF40AC
Price: 56.0 CHF
Availability: InStock

CHF 56.00

~~CHF 60.00~~ CHF 56.00

Sale Sold out

Tax included.

Product variants

Quantity

Specifications
Contact arrangement	SPST-NO
Coil voltage	24Vdc (18 to 32Vdc)
Rated voltage	12 to 800Vdc
Rated current	40A (Cable 10mm²)
Current carrying capacity	60A, 120min 100A, 5min 200A, 30s 300A, 5s
Min. load	1A, 12Vdc
Max. switching current	400A, 450Vdc, 1 time
Contact resistance (initial)	< 5m? (at 40A)
Electrical life¹(resistive load)	40A, 450Vdc, 10000 times (make & break) 40A, 750Vdc, 5000 times (make & break) 120A, 450Vdc, 30 times (make & break) -40A, 200Vdc, 10000 times (make & break) -40A, 750Vdc, 5000 times (make & break)
Mechanical Life	200,000 cycles
Note 1: Unless specified, all tests are conducted in normal room temperature. Operating frequency: 0.6s on, 5.4s off.
