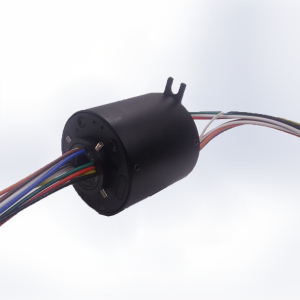

ID12.7mm 12-Channel, 10A, Through-bore Slip Ring

ID12.7mm 12-Channel, 10A, Through-bore Slip Ring

The one of our through-bore slip ring models, ID12.7mm has 12 channels which each have 10A operating current.

Technical Specifications
Channels	12
Current Amp. (maximum)	? 10A / Per ring
Operating voltage	? 600VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	0- 600 rpm
Operating temperature	-30°C to +80°C
Connection Cable Length	200 mm cable (Stator /Rotor)
Contact Material	Gold Alloy (Copper-Zinc-Gold)
Working Position	Vertical and Horizontal

Download the PDF to get more details...
