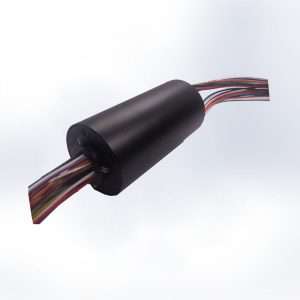

ID12.7mm 24-Channel, 10A, Through-bore Slip Ring
ID12.7mm 24-Channel, 10A, Through-bore Slip Ring
Regular price
CHF 380.00
Regular price
CHF 380.00
Sale price
CHF 380.00
Unit price
per
Tax included.
Couldn't load pickup availability
ID12.7mm 24-Channel, 10A, Through-bore Slip Ring
The one of our through-bore slip ring models, ID12.7mm has 24 channels which each have 10A operating current.| Technical Specifications | |
| Channels/ | 24 |
| Current Amp. (max) | ? 10A / Per ring |
| Operating voltage | ? 600VAC /DC |
| Electrical Interference | ? 0,01 ? (5 rpm, 6 VDC, 0,2 A) |
| Number of revolutions | ?600 rpm |
| Operating temperature | -30°C to +80°C |
| Connection Cable Length | 1000 mm cable (Stator /Rotor) |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Working Position | Vertical and Horizontal |
