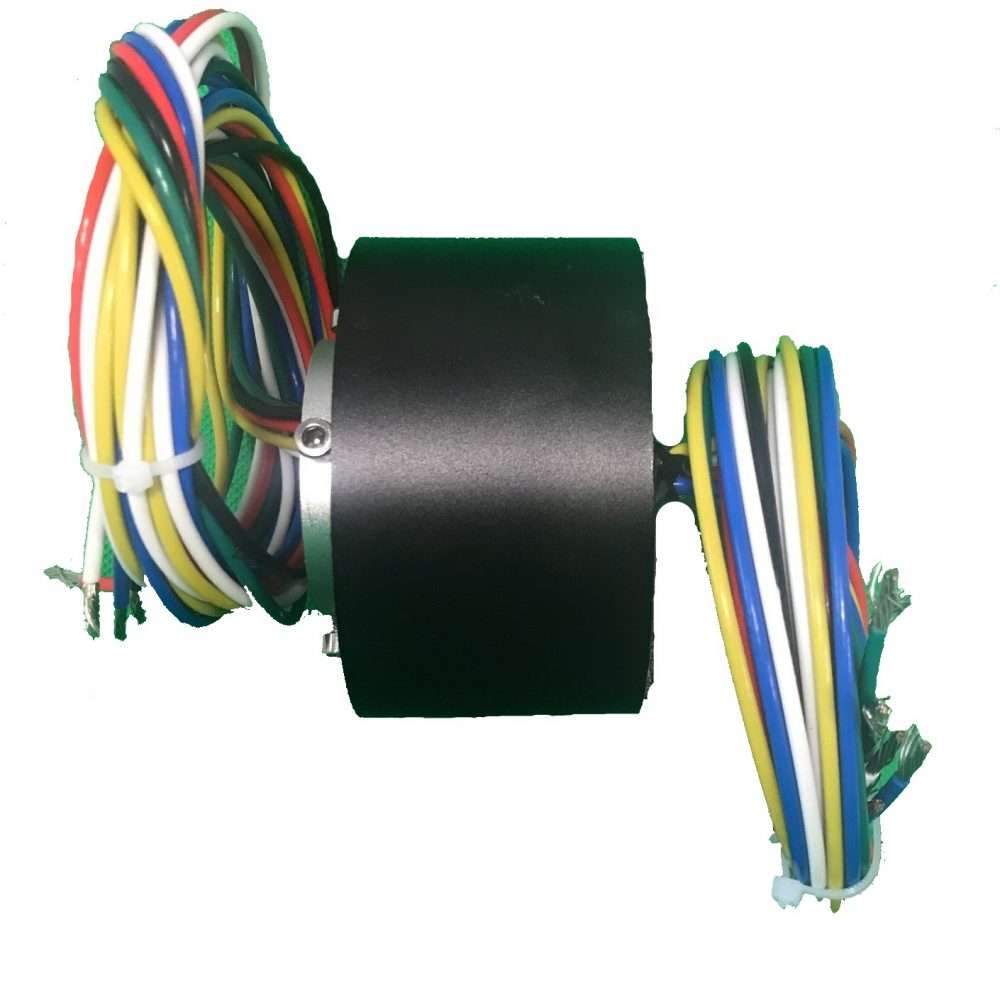

ID25mm 18-Channel, 20A, Through-bore Slip Ring

ID25mm 18-Channel, 20A, Through-bore Slip Ring

The one of our through-bore slip ring models, ID25mm has 18 channels which each have 20A operating current.

Technical Specifications
Channels	18
Current Amp. (Maximum)	? 20A / Per ring
Operating Voltage	? 600VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	0- 500 rpm
Operating Temperature	-20°C to +80°C
Connection Cable Length	1000 mm cable (Stator /Rotor)
Contact Material	Gold Alloy (Copper-Zinc-Gold)
Working Position	Vertical and Horizontal
