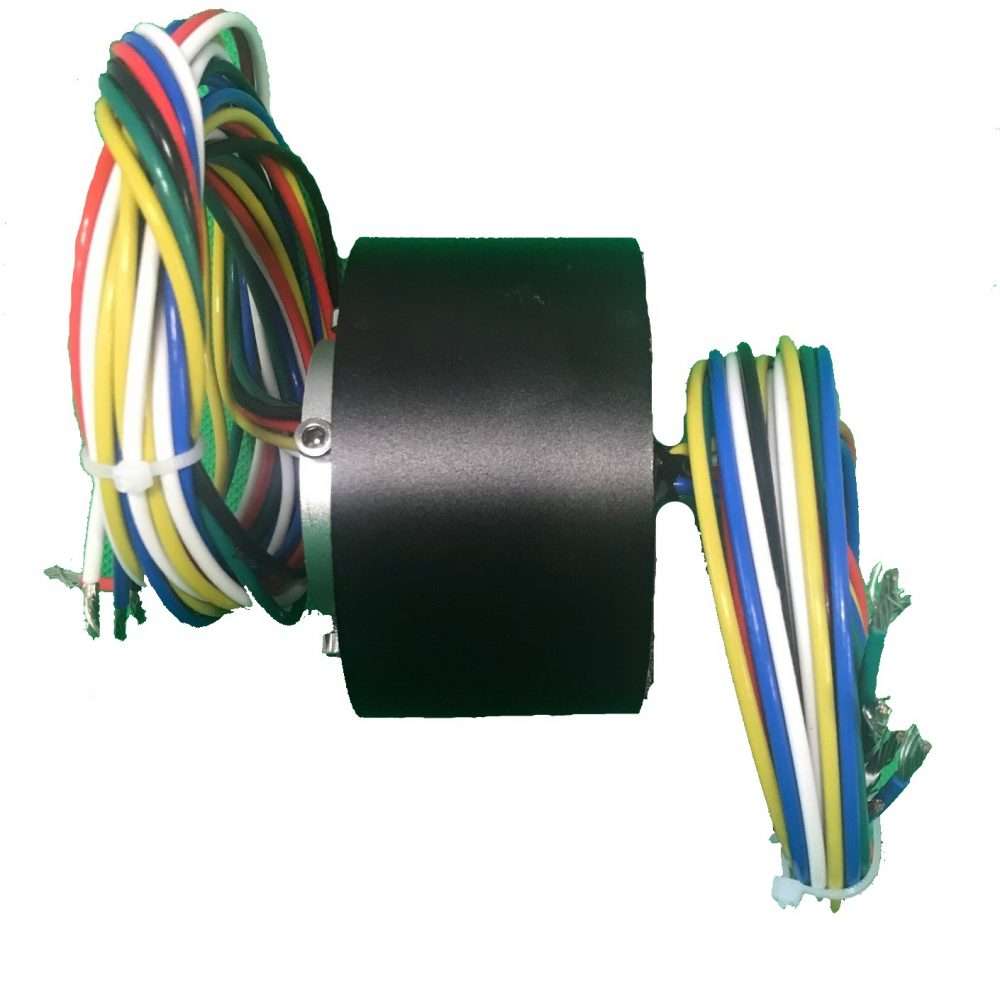

ID25mm 6-Channel, 15A, Through-bore Slip Ring

ID25mm 6-Channel, 15A, Through-bore Slip Ring

The one of our through-bore slip ring models, ID25mm has 6 channels which each have 15A operating current.

Technical Specifications
Channels	6
Current Amp. (Maximum)	? 15A / Per ring
Operating Voltage	? 600VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	0- 500 rpm
Operating Temperature	-30°C to +80°C
Connection Cable Length	1000 mm cable (Stator /Rotor)
Contact Material	Precious metals
Working Position	Vertical and Horizontal
