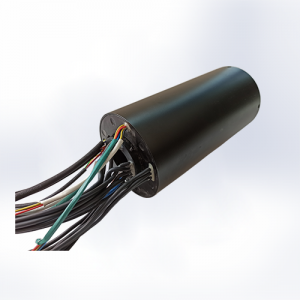

ID38.1mm 43-Channel Through-bore Slip Ring

ID38.1mm 43-Channel Through-bore Slip Ring

Regular price CHF 2,199.00
Regular price CHF 2,300.00 Sale price CHF 2,199.00
Sale Sold out
Tax included.

ID38.1mm 43-Channel (7x 30A @ 8x 10A @ 28x 5A) Through-bore Slip Ring

ID38.1mm series through-bore slipring which has 43 channels which 7 of them have 30A operating current, 8 of them have 10A operating current and 28 of them 5A operating current.
Technical Specifications
Channels  43
Inner Diameter  38 mm
Current Amp. (maximum)  7-channel 30A  8-channel 10A  28-channel 5A
Operating voltage  ? 600VAC /250VDC
Electrical Interference  ? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions  ? 600 rpm
Operating temperature  -30°C to +80°C
Connection Cable Length  1000 mm cable (Stator /Rotor)
Contact Material  Gold Alloy (Copper-Zinc-Gold)
Working Position  Vertical and Horizontal
