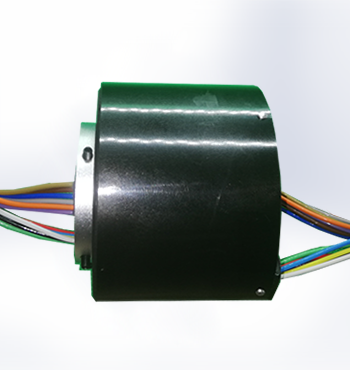

ID38mm 12-Channel, 10A, Through-bore Slip Ring

ID38mm 12-Channel, 10A, Through-bore Slip Ring

The one of our through-bore slip ring models, ID38mm has 12 channels which each have 10A operating current. Some of the areas of usage of ID38mm: robots, cranes & heavy industry tools, textile machines and gantry cranes.

Technical Specifications
Channels	12
Current Amp. (maximum)	? 10A / Per ring
Operating voltage	? 600VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	0- 600 rpm
Operating temperature	-30°C to +80°C
Connection Cable Length	1000 mm cable (Stator /Rotor)
Contact Material	Gold Alloy (Copper-Zinc-Gold)
Working Position	Vertical and Horizontal

Download the PDF to get more details...
