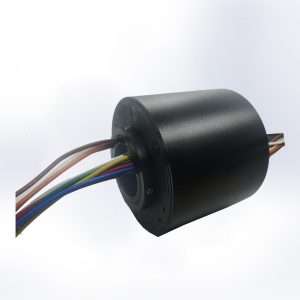

ID38mm 12-Channel, 15A, Through-bore Slip Ring

ID38mm 12-Channel, 15A, Through-bore Slip Ring

The one of our through-bore slip ring models, id38mm has 12 channels which each have 15A operating current. Some of the areas of usage of id38mm: Robots, cranes/gantry cranes, heavy industry tools, textil machines.

Technical Specifications
Channels	12
Current Amp. (Maximum)	? 15A / Per ring
Operating Voltage	? 600VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	0- 600 rpm
Operating Temperature	-20°C to +80°C
Connection Cable Length	1000 mm cable (Stator /Rotor)
Contact Material	Precious metals
Working Position	Vertical and Horizontal
