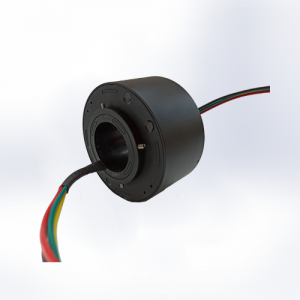

ID50mm 4-Channel, 30A, Through-bore Slip Ring
The one of our through-bore slip ring models, ID50mm has 4 channels which each have 30A operating current. Some of the areas of usage of ID50mm: Robots, cranes & heavy industry tools, textile machines and gantry cranes.Technical Specifications | |
Channels | 4 |
Current Amp. (maximum) | ? 30A / Per ring |
Inner Diameter | 50 mm |
Outer Diameter | 119 mm |
Operating voltage | ? 380VAC /DC |
Electrical Interference | ? 0,01 ? (5 rpm, 6 VDC, 0,2 A) |
Number of revolutions | 0- 500 rpm |
Operating temperature | -20°C to +80°C |
Connection Cable Length | 1000 mm cable (Stator /Rotor) |
Contact Material | Gold Alloy (Copper-Zinc-Gold) |
Working Position | Vertical and Horizontal |
