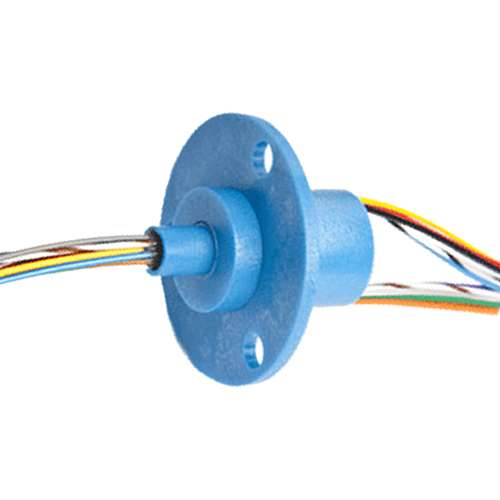

LTN 12-Channel Capsule Slip Ring SC020-12-A01

LTN Servotechnik Gmbh, SC020-12-A01 Capsule Slipring

LTN company offers a high-quality capsule type slip ring model, SC020-12-A01  to transmit electrical signals and power from stationary to rotating systems.

Electrical and Mechanical  Specification
Number of rings	12
Current	? 2 A per ring
	? 4 A with 2 combined rings
	? 6 A with 3 combined rings
Voltage	? 48 VDC / 240 VAC
High pot	? 500 VAC at 50Hz / 1s
Insulation resistance	? 1000 M? at 500 VDC
Noise	? 20 m? at 5 min-1 at 6 VDC / 50 mA
Contacts	Gold-Gold
Leads	Silver plated copper with PTFE insulation
Speed	? 250 rpm
Protection class	IP51
Temperature	-20 °C to +80 °C
Connection	600 mm leads (Rotor/Stator)
	AWG 26/19 ( 0,15 mm2 )
Bearings	Miniature ball bearings of steel
Housing	PC GF with flange
