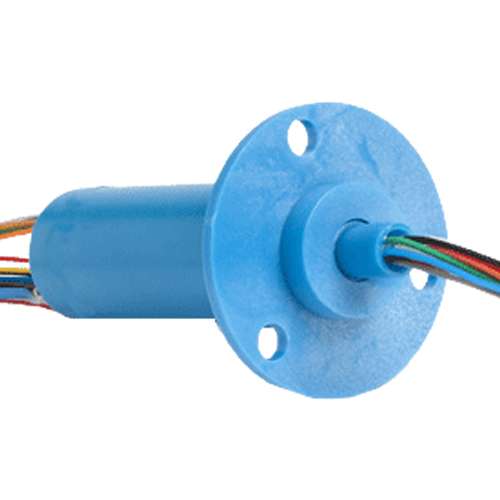

LTN 36-Channel Capsule Slip Ring SC020-36-A01

LTN 36-Channel Capsule Slip Ring SC020-36-A01

Regular price CHF 445.00
Regular price CHF 445.00 Sale price CHF 445.00
Sale Sold out
Tax included.

LTN 36-Channel Capsule Slip Ring SC020-36-A01

LTN Servotechnik Gmbh, SC020-36-A01 Capsule Slipring

LTN company offers a high-quality capsule type slip ring model, SC020-36-A01  to transmit electrical signals and power from stationary to rotating systems.
Electrical and Mechanical  Specification
Number of rings 36
Current ? 2 A per ring
  ? 4 A with 2 combined rings
  ? 6 A with 3 combined rings
Voltage ? 48 VDC / 240 VAC
High pot ? 500 VAC at 50Hz / 1s
Insulation resistance ? 1000 M? at 500 VDC
Noise       ? 20 m? at 5 min-1 at 6 VDC / 50 mA
Contacts Gold-Gold
Leads Silver plated copper with PTFE insulation
Speed ? 250 rpm
Protection class IP51
Temperature -20 °C to +80 °C
Connection  600 mm leads (Rotor/Stator)
  AWG 26/19 ( 0,15 mm2 )
Bearings Miniature ball bearings of steel
Housing PC GF with flange
