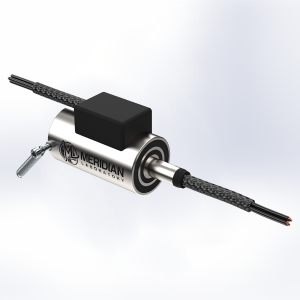

Meridian Laboratory MX-4-0601 Brushless Slip Ring

Meridian Laboratory 's M-Series, MX-4-0601 brushless slip ring 's alternatives are available in different capacities capable ofproviding power and signals up to 100 contacts, and up to 35A/contact. Like all other ROTOCON rotating electrical contacts, the M-Series is designed to be able to accommodate signal/data level transmission as well as high current power transfer. Similarly, the M-Series remains unaffected by machine vibration or rotational speed, throughout its entire RPM range. The M-Series is offered in a variety of electrical termination options including ring terminals, flying leads, MIL-spec, or wet-mate connectors on both rotating and stationary ends.

Advantages

  • Brushless, maintenance-free operation
  • Combines with rotary union, fiber optic rotary joint (FORJ) and other add-ons
  • Unaffected by machine vibration or rotational speed
  • Environmentally sealed
  • Mount and operate in any orientation

Applications

  • Packaging Equipment
  • Dynamometers
  • Thermal Forming Machines
  • Assembly Turntables
  • Bottling Applications
  • Pharmaceutical Filling Equipment
SPECIFICATIONS
Number of Circuits 4
AC / DC Voltage 600V
Max Current / Contact 18A
Max Current / Unit 72A
Min. Insulation Resistance >500M? @ 1 kVDC
Nominal RPM 0 to 2000
Frequency 0 to 100 MHz (Up to 1 GHz with certain models and applications)</span >
Temperature -20 to 70°C
Housing Material 304 Stainless Steel
Weight (±15%) 1.0 LB
Contact Resistance <1? m
Dynamic Resistance <1? m (0 to 2000 rpm)
Electrical Noise <0.01 µV
Operation Intrinsically immune to internal arcing
Maintenance Required None
Absolute maximums under 60 seconds
RPM 4000
Cable Length (Rotor / Stator) 1 meter
