Moflon MW1430 4-Channel 30A Capsule Slip Ring
Moflon MW1430 4-Channel 30A Capsule Slip Ring
Regular price
CHF 75.00
Regular price
CHF 100.00
Sale price
CHF 75.00
Unit price
per
Tax included.
Couldn't load pickup availability

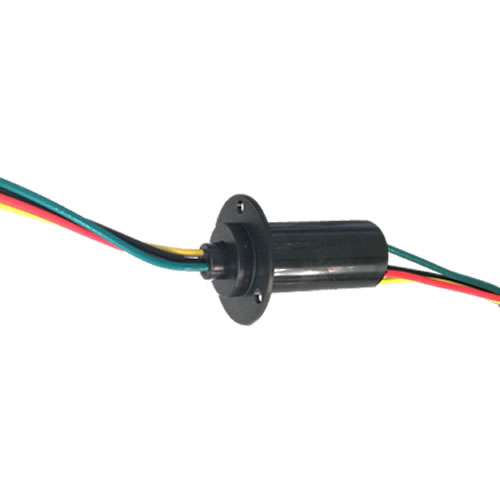

Moflon MW1430 4-Channel 30A Capsule Slip Ring
Moflon MW1430 has 4 channels and it can transmit until 30 Ampers. In the below table, you can find spesifications of this item. 4-Channel, 30A, 300rpm, 400V, Plastic| Number of Channel | 4 |
|---|---|
| Rated Current | ? 30A / Per ring |
| Rated Voltage, max 250Vac | 250VAC |
| Operating Temperature Range | -40°C to +80°C |
| Number of revolutions | 0-300 rpm |
| Connection Cable Length | 300 mm cable (Stator /Rotor) |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ? 0,01 ? (5 rpm, 6 VDC, 0,2 A) |
