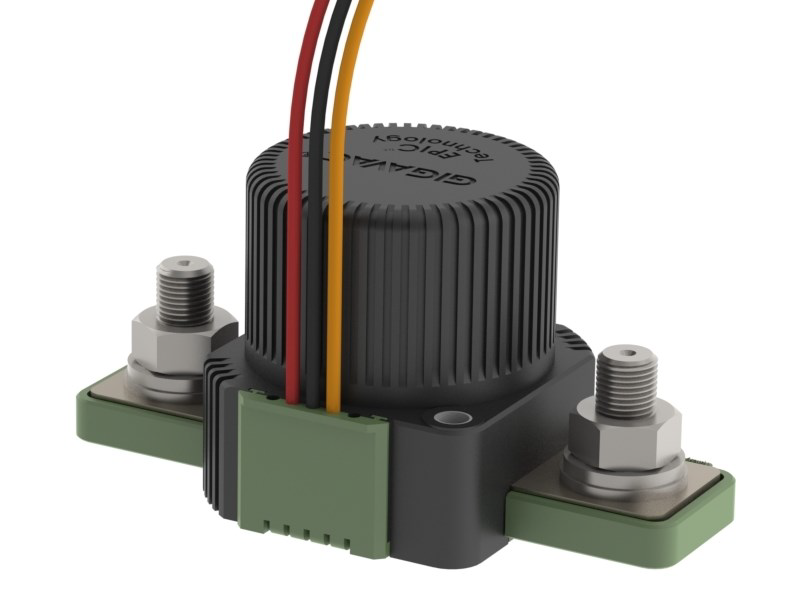

MXL14C1AB Latching Contactor

MXL14C1AB Latching Contactor

Specifications
Coil Voltage, Nominal	24 VDC
Coil Voltage, Max	32 VDC
Drive	High Side
Coil Wire	38 cm (15 in)
Aux. Contacts	SPST, NO
Set and Reset Voltage, Max	15 VDC
Set and Reset Current, Max (75 ms)	1.7 A
Coil Back EMF	0 V
Transients, Max (13 ms)	±50 V
Reverse Polarity	50 V
Temperature Range	-55°C to +100°C
Download PDF to get more details
