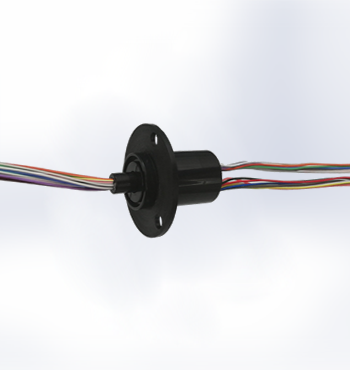

OD22mm 18-Channel, 2A, Capsule Slip Ring (Plastic)

OD22mm 18-Channel, 2A, Capsule Slip Ring (Plastic)

This product is the plastic model of 18-channel slip rings of OD22mm series and 18-channel slip ring models of OD22mm have aluminum and flangeless models at the same time.

Technical Specifications
Channels	18
Current Amp. (maximum)	? 2A / Per ring
Operating voltage	? 250VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	0- 300 rpm
Operating temperature	-40°C to +80°C
Connection Cable Length	600 mm cable (Stator /Rotor)
Contact Material	Gold Alloy (Copper-Zinc-Gold)
Working Position	Vertical and Horizontal

Download the PDF to get more details...
