OD22mm 1x1Gbps, 2x20A+9S

OD22mm 1x1Gbps, 2x20A+9S

Regular price CHF 280.00
Regular price CHF 280.00 Sale price CHF 280.00
Sale Sold out
Tax included.

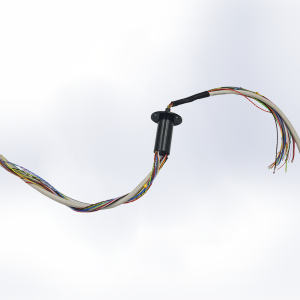

OD22mm 1x1Gbps, 2x20A+9S, Capsule Slip Ring

The one of our capsule slip ring models. The OD22mm has 2 channels each with 20A operating current, 9 signal and carries 1gbps ethernet simultaneously. Some of the areas of usage of OD22mm: robots, cameras and amusement park equipment. Download the PDF to get more details...
Technical Specifications
Channels  2X20A/ 9 Signal/ 1• Gigabit Ethernet
Outer Diameter  22
Current Amp. (maximum)  2x20A @ 9x signal
Operating voltage  ? 400VAC /DC
Electrical Interference  ? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions  0- 250 rpm
Operating temperature  -20°C to +80°C
Connection Cable Length  600 mm cable (Stator /Rotor)
Contact Material  Precious Metals
Working Position  Vertical and Horizontal
