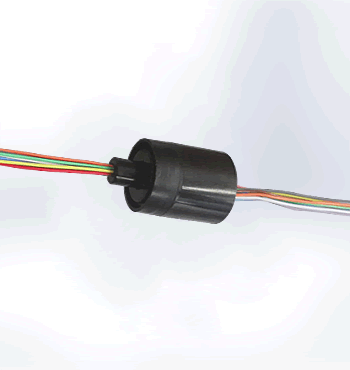

OD22mm 24-Channel, 2A, Capsule Slip Ring (Flangeless)

OD22mm 24-Channel, 2A, Capsule Slip Ring (Flangeless)

This product is the flangeless model of 24-channel slip rings of OD22mm series and 24-channel slip ring models of OD22mm have plastic and aluminum models at the same time.

Technical Specifications
Channels	24
Current Amp. (maximum)	? 2A / Per ring
Operating voltage	? 250VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	0- 300 rpm
Operating temperature	-40°C to +80°C
Connection Cable Length	600 mm cable (Stator /Rotor)
Contact Material	Gold Alloy (Copper-Zinc-Gold)
Working Position	Vertical and Horizontal

Download the PDF to get more details...
