OD22mm 6-Channel, 2A, Capsule Slip Ring (Aluminum)

OD22mm 6-Channel, 2A, Capsule Slip Ring (Aluminum)

Regular price CHF 32.00
Regular price CHF 32.00 Sale price CHF 32.00
Sale Sold out
Tax included.

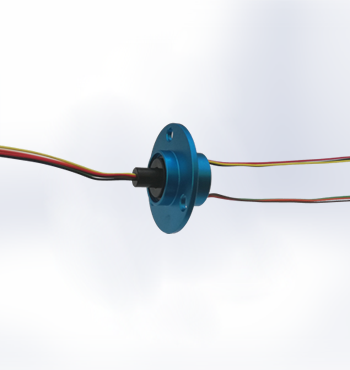

OD22mm 6-Channel, 2A, Aluminum Capsule Slip Ring (Aluminum)

This product is the aluminum model of 6-channel slip rings of OD22mm series and 6-channel slip ring models of OD22mm have plastic and flangeless models at the same time.
Technical Specifications
Channels  6
Current Amp. (maximum)  ? 2A / Per ring
Operating voltage  ? 250VAC /DC
Electrical Interference  ? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions  0- 300 rpm
Operating temperature  -40°C to +80°C
Connection Cable Length  600 mm cable (Stator /Rotor)
Contact Material  Gold Alloy (Copper-Zinc-Gold)
Working Position  Vertical and Horizontal
