Roda

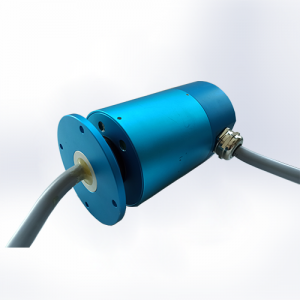

OD99mm, 12-Channels, 15A, IP65 Slip Ring

OD99mm, 12-Channels, 15A, IP65 Slip Ring

Regular price CHF 1,899.00
Regular price CHF 1,899.00 Sale price CHF 1,899.00
Sale Sold out
Tax included.

OD99mm IP65 12-Channel, 15A, Heavy-Duty Slip Ring

Roda Sliprings offer industrial level heavy-duty slip ring model, OD99mm has 12 channels and each channels can transmit 15A , 400V.
Technical Specifications
Channels  12
Current Amp. (maximum)  ? 15A / Per ring
Operating voltage  ? 380V AC / 240V DC
Electrical Interference  ? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Dielectric Strength  500V AC @ 50 Hz, 60s
Insulation Resistance  ? 500 M? / 500V DC
Housing Material  Aluminum alloy
Number of revolutions  0-500 rpm
Operating temperature  -20 °C to +80 °C
Connection Cable Length  2500 mm cable (Stator /Rotor)
Protection Class  IP65
Working Position  Vertical and Horizontal
OD99mm, 12-Channels, 15A, IP65 Slip Ring - Drawing
