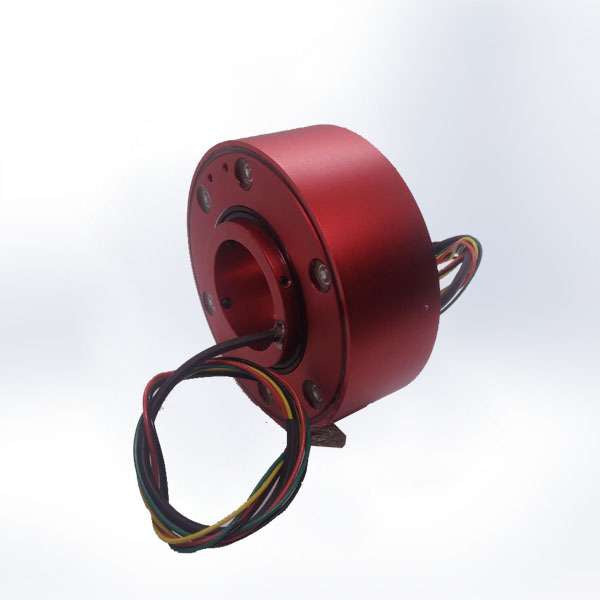

Pancake ID30mm 4-Channel, 5A, Pancake Slip Ring

ID30mm 4-Channel, 5A, Pancake Slip Ring

Roda Sliprings offer ID30mm  pancake slip ring models that has 4-channels which each have 5A operating current.

Technical Specifications
Channels	4
Inner Diameter / Outer Diameter	30mm / 99mm
Total Length	35mm
Current Amp. (maximum)	? 5A / Per ring
Operating voltage	? 600VAC /DC
Electrical Interference	? 0,01 ? (5 rpm, 6 VDC, 0,2 A)
Number of revolutions	? 600 rpm
Operating temperature	-30°C to +80°C
Connection Cable Length	600 mm cable (Stator /Rotor)
Contact Material	Gold Alloy (Copper-Zinc-Gold)
Working Position	Vertical and Horizontal
