Ravioli
Ravioli GPRPB12 Slip Ring
Ravioli GPRPB12 Slip Ring
Regular price
CHF 1,200.00
Regular price
CHF 1,200.00
Sale price
CHF 1,200.00
Unit price
per
Tax included.
Couldn't load pickup availability

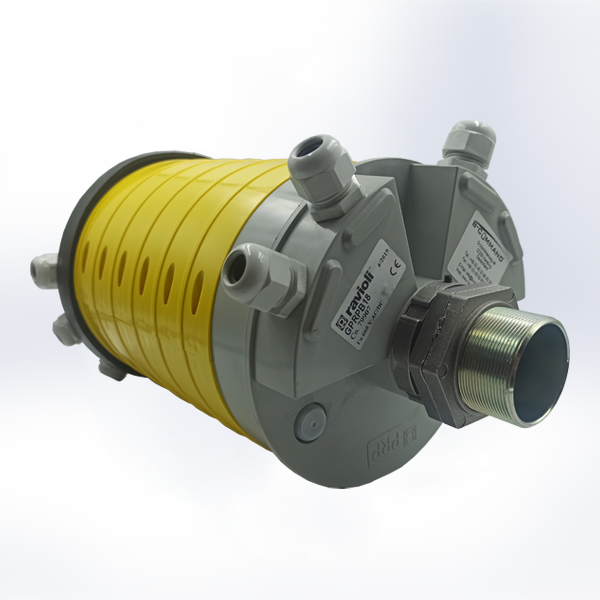

Ravioli GPRPB12 Slip Ring
Ravioli GPRPB12 12-Channel slip ring.| Specifications | |
| Material housing | thermoplastic segments |
| Protection degree | IP51 |
| Operating temperature | -20 °C to +60 °C |
| Number of rings | 12 rings |
| Material brushes | Copper-graphite |
| Rated operational current | 20A |
| Rated operational voltage | 660 Vac/Vdc |
| Insulation test voltage | 2,5 kV |
| Insulation resistance | >200M? |
| Operating speed | 30 rotations / min |
| Free inner diameter | 42mm |
| Mounting position | vertical recommended, other positions possible |
| Maintenance cycles | 200.000 / 50.000 rotations |
