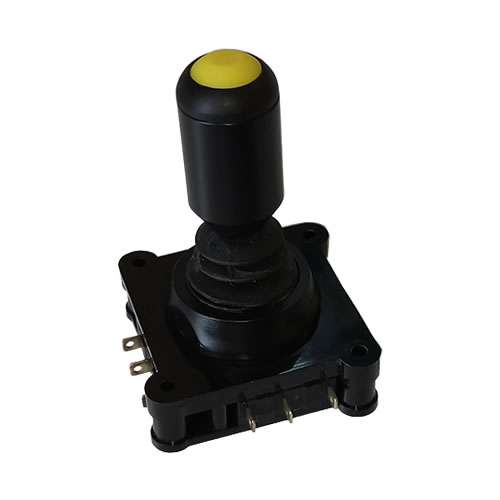

RODA JEN–S1B-O Finger Type Joystick with Pushbutton
RODA JEN–S1B-O Finger Type Joystick with Pushbutton
Regular price
CHF 31.50
Regular price
CHF 45.00
Sale price
CHF 31.50
Unit price
per
Tax included.
Couldn't load pickup availability
RODA JEN–S1B-O Finger Type Joystick with Pushbutton
JEN–S1B-O joystick has newly constructed with space saving design. The optimized price-performance ratio for small to medium usage. Two-axis control (X+, X-,0, Y+,Y-), 1NO+1NC mico-switch for each direction, long life, economic, spring return, and IP65 protection class for avobe panel.
Options:
|
Electrical & Mechanical Specifications |
|
| Operation Angle | ±12° from the center position |
| Movement | 360° |
| Operation Force | Between 2,2N and 2,8N |
| Contact | 1NO+1NC for each side |
| Micro-switches Rating | 250Vac /5A |
| Insulation Resistance | >1000M? (500Vdc) |
| Dielectric Strencght | 1min at 500Vac |
| Mechanical Life | 0,2×10? |
| Operating Temperature | -20°C to +65°C |
| Weight | Approx. 40 g |
- Uniaxial
- Push-Button
- You can select the movement options from the table below. The option type should be added the end of the product code. For example Option-O: JEN-S1-O
| Moving Mechanism | ||
| Option X | Option Y | Option L |
 |
 |
 |
| Option N | Option T | Option O |
 |
 |
 |
