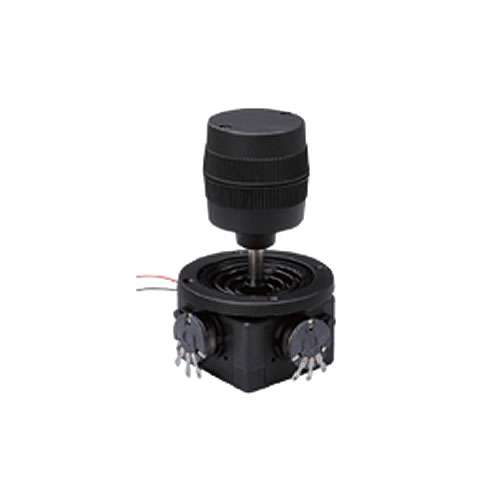

RODA JOR - X2 Series 3-Axis Potentiometer Joystick

RODA JOR - X2 Series 3-Axis Potentiometer Joystick

JOR – X2 Series triaxial joystick controller series is designed for applications requiring triaxial control with potentiometers in X, Y, and Z axes. Thanks to its strong structure and very compact dimensions, it has many industrial uses. With its flexible action mechanism and long lifetime, this product has a very low reset error. -  Single, Double, and Three-Axis Control -  Long Usage Time -  Economic -  Spring Return (To Center) Also available in two-axis (two-dimensional) and four-dimensional models, contact us for detailed information about these products.

Electrical & Mechanical Specifications
Joystick Axis Movement (X, Y-Axis)	50 ° Full Movement From Center 220 ° Full Movement From Center
Movement(Z-Axis)	± 45 ° from the center (90 ° Full Motion)
Potentiometer Resistance Values	5K? (50 °) 5K? (220 °)
Resistance Tolerance	± 20%
Independent Linearity	± 1%
Output Sensitivity	0.5% max
Mechanical Life	0.5x10?
Dielectric Strength	1min at 500Vac
Operating Temperature	-20°C  to +65°C
Type / Dimensions	Square Type L x W x H (40.4mm x 50mm x 84mm) Arm Length: 39.5mm Diameter (?): 41mm Square Edge: 40.4mm



Application Areas

• Mobile Video Equipment and CCTV Camera Control Panels
• Measuring Equipment
• Medical Image Imaging Systems
• Packaging Control Equipment
• Robotic Applications
• Industrial Control Equipment
