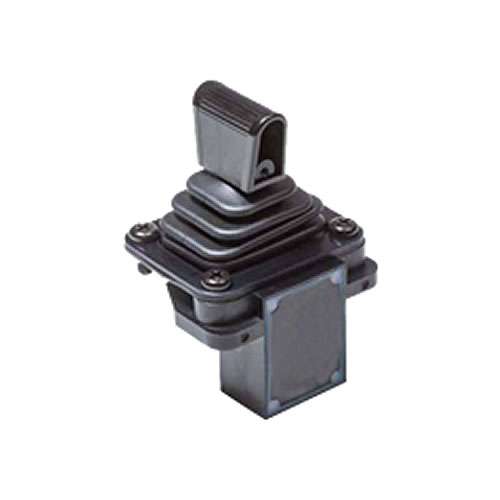

Roda MEM-2F Single Axis Joystick

Roda MEM-2F Single Axis Joystick

MEM-X2F series 1-axis  joystick has newly constructed. It is suitable for industrial applications.

Electrical & Mechanical Specifications
Operation Angle	Full movement from center to ± 20 ° in all directions ± 25 °
Electrical Output	Applied Voltage Output (3Vdc to 28Vdc)
Output Characteristics	Type A	Type B
Resistance Value	10Kohm ±%5
Operation Force	Between 1 and 5,5N
Mechanical Life	2x10?
Dielectric Strength	1min at 500Vac
Insulation Resistance	Above 1,000 M? at 500Vdc.
Operating Temperature	-20°C  to +60°C
Weight	Approx. 100 g
