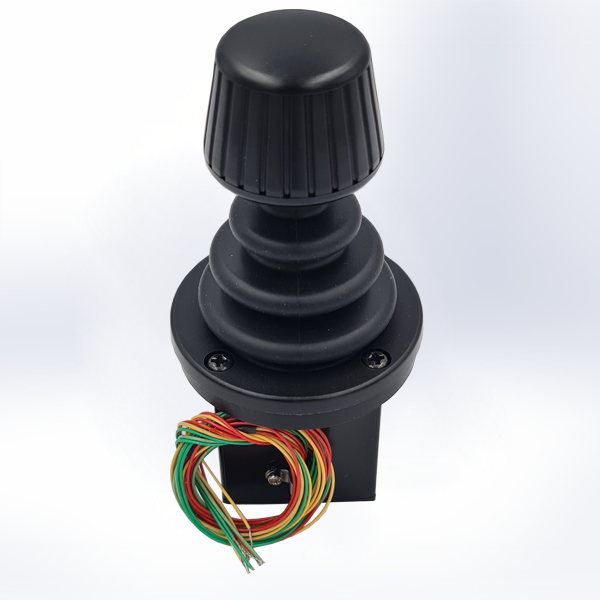

Sakae 30JHK-ZT-30R3G Joystick – 3-Axis Precision Control

The Sakae 30JHK-ZT-30R3G joystick is a high-performance three-axis control device ideal for precision applications such as robotics, 3D coordinate measuring equipment, electric wheelchairs, and printing machines.

Mechanical Properties:

• Control Range:

  • X, Y axis: approx. ±10° to ±15° from center

  • Z axis: approx. ±30° to ±35° from center

• Operating Force:

  • X, Y axis: 1 ~ 2N (100 ~ 200gf)

  • Z axis: 30 ~ 70mN·m (300 ~ 700gf·cm)

• Spring-loaded auto-return (omnidirectional type)

• Operating Temperature: –20°C to +60°C

• Mechanical Life: approx. 2 million operations

Electrical Performance:

• Potentiometer (X, Y axis): Built-in 30JH series conductive plastic resistor

  • Resistance: 10 kΩ ± 20%

  • Power Rating: 0.1W

  • Electrical Angle: approx. 20°

  • Linearity Tolerance: ±5%

• Potentiometer (Z axis):

  • Resistance: 10 kΩ ± 20%

  • Power Rating: 0.04W

  • Electrical Angle: approx. 60°

  • Linearity Tolerance: ±5%

• Electrical Life: approx. 2 million operations

Application Areas:
Used in 3-axis measuring equipment, electric mobility devices, robotic systems, and industrial control consoles requiring precision and durability.
