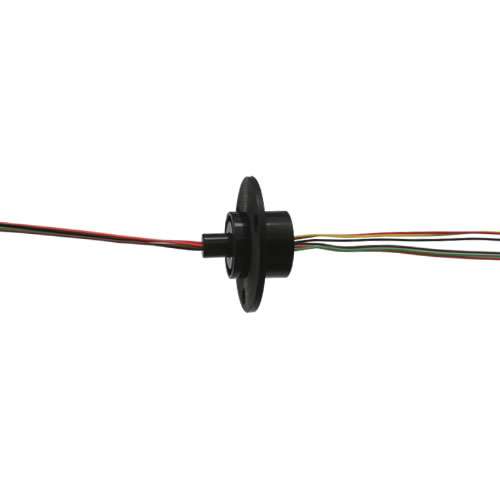

Senring SNM022A-06 6-Channel 2A Capsule Slip Ring
Senring SNM022A-06 6-Channel 2A Capsule Slip Ring
Regular price
CHF 49.00
Regular price
CHF 65.00
Sale price
CHF 49.00
Unit price
per
Tax included.
Couldn't load pickup availability
Senring SNM022A 6-Channel 2A Capsule Slip Ring
| Number of Channel | 6 |
|---|---|
| Rated Current | ? 2A / Per ring |
| Rated Voltage, max 250Vac | 250VAC |
| Operating Temperature Range | -40°C to +80°C |
| Number of revolutions | 300 rpm |
| Connection Cable Length | 600 mm cable (Stator /Rotor) |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ? 0,01 ? (5 rpm, 6 VDC, 0,2 A) |
