SP120 - Single-Pole Connector-120A

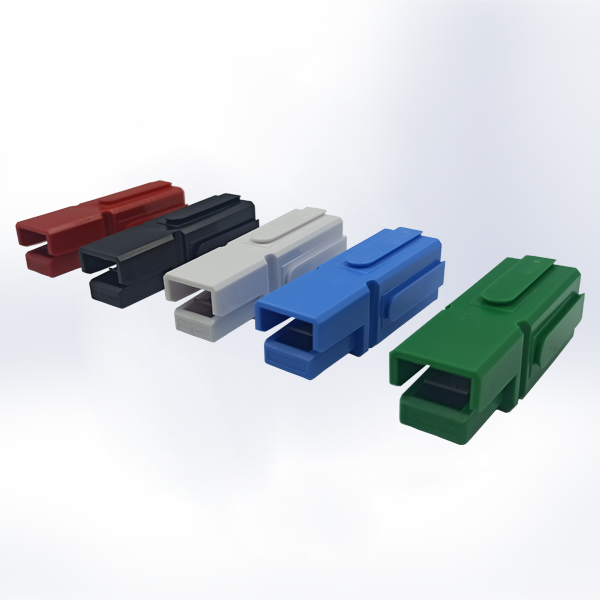

SP120 - Single-Pole Connector has 5 different color options as blue, red, green, black and white. The connector is appropriate for 120A. It is suitable AC or DC up to 600 volts amp. The single pole battery  has silver plated solid contacts. The contacts provide lowest contact resistance to stronger conductivity at high current. Its stainless steel springs press to contacts. In housing the springs ensure low-resistance connection. It meets the standards of IP20 protection class. Operating temperature range of the battery connector is from -20 ° C to +105 ° C degrees. Some of the areas of the usage of the SP120 - Single-Pole Connector are UPS systems, electric vehicles, material handling, telecommunications, personal mobility market, medical, modular office equipment, AC/DC power management and forklifts. The one-pole battery connector offers high quality and high efficiency to its customers.

FEATURES
Nominal Current	120 A
Nominal Voltage	600 VAC / VDC
Operating Temperature	-20 ° C to +105 ° C
Withstanding Voltage	2200 VDC
Contact resistance	136 micro-ohms
Material of terminal	T2 silver plated
Material of Shell	PC110U
Size of terminal	16 mm^2 (AWG6)
Mating cycles	10000 for disconnect only
